High Voltage and Extra High Voltage Power Cables are produced for use in electricity power transmission in urban areas, in accordance with International standards.

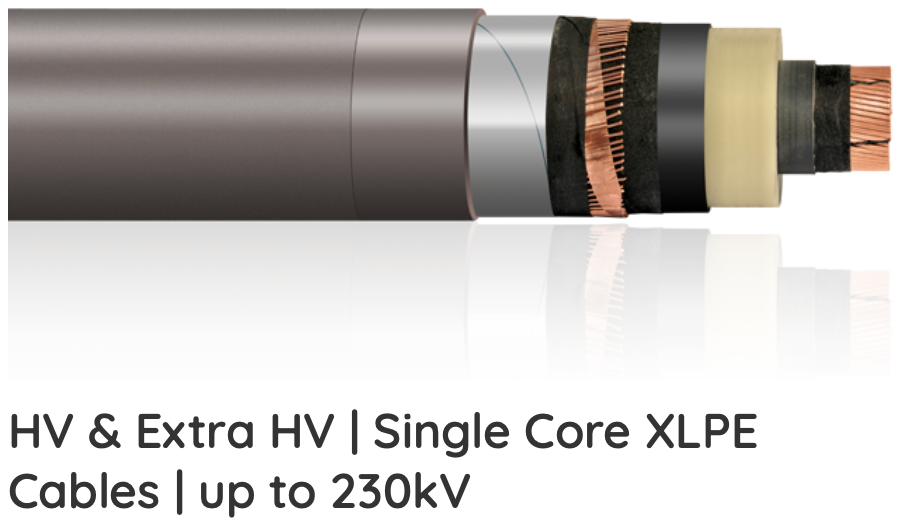

HV & Extra HV | Single Core XLPE Cables | up to 230kV

Specification:

• Electrical high voltage power cables complying with IEC 6840, BS 7912, IEC 62067, ICEA S108-760. Fully water tight design.

Conductor:

• Aluminum or copper conductors round compacted and segmental (Millikan conductor) up to 2500mm².

Insulation:

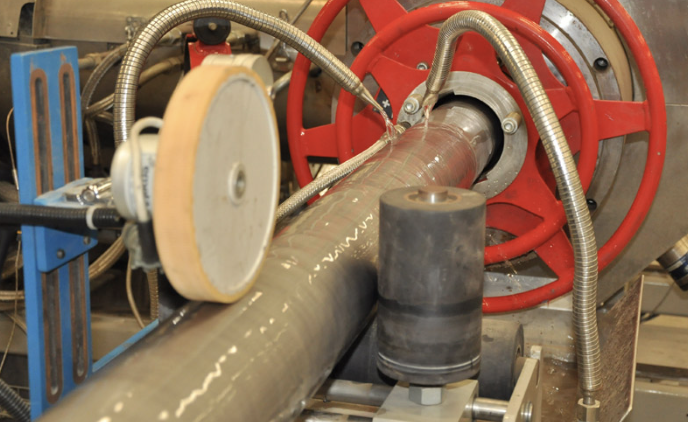

• XLPE insulation / CCV Technology with triple head extrusion dry cure and dry cooling.

Metallic Sheathing:

• Copper wire screen – cross section are upon request or short circuit current with aluminum laminated sheathed
• Lead sheath
• Combination between copper wire and Lead

Outer Sheathing:

• HDPE sheathed with graphite coating or upon request
