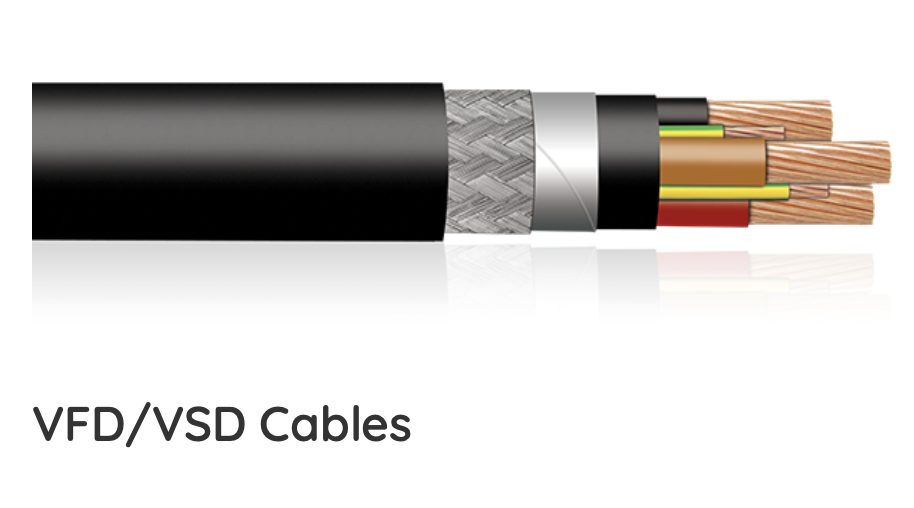

VFD cables are subject to superior protection against electrical noise, increased stability in electrical performance and improved system uptime in harsh environments.

Specification:

• Electrical low voltage cables complying with IEC 60502-1. All cable are Flame Retardant to IEC 60332-1 Vertical Flame Propagation Test.

Conductor:

• High conductivity soft annealed copper according to BS EN 60228, Class 1, Class 2 stranded and Class 5 flexible conductor.

Insulation:

• Polyvinyl chloride (PVC) & Cross-linked polyethylene (XLPE) with Maximum service temperature 90ºC.

Shielding:

• Copper wire screen – cross section are upon request
• Copper tape screen
• Tinned copper & annealed copper wire Braided

Armoring (upon request):

• Galvanized Steel Wire “SWA”

Outer Sheathing:

• PVC ST2 and LS0H ST8

Special Requirements (upon request):

• Three Ph cores can be assembled with three earthing bare conductor or insulated conductor
• Tinned copper conductor
• High fire performance, Flame propagation tests: IEC 60332-3.24 Category C – IEC 60332-3.23 Category B – IEC 60332-3.22 Category A
• Fire resistant control cable with MICA – BS 6387 CAT CWZ
• Chemical performance: Oil resistance
• Sunlight & UV Resistant
• Water resistance
• Anti-termite resistant
• Special color for insulation and outer sheath
• Numbering identification for cores
• Special outer sheath material: PVC(FRLS)
• Different packing options are available
